YF-04000-8S
YF-04000-8S全伺服酒精棉片包裝機裝箱單和技術參數

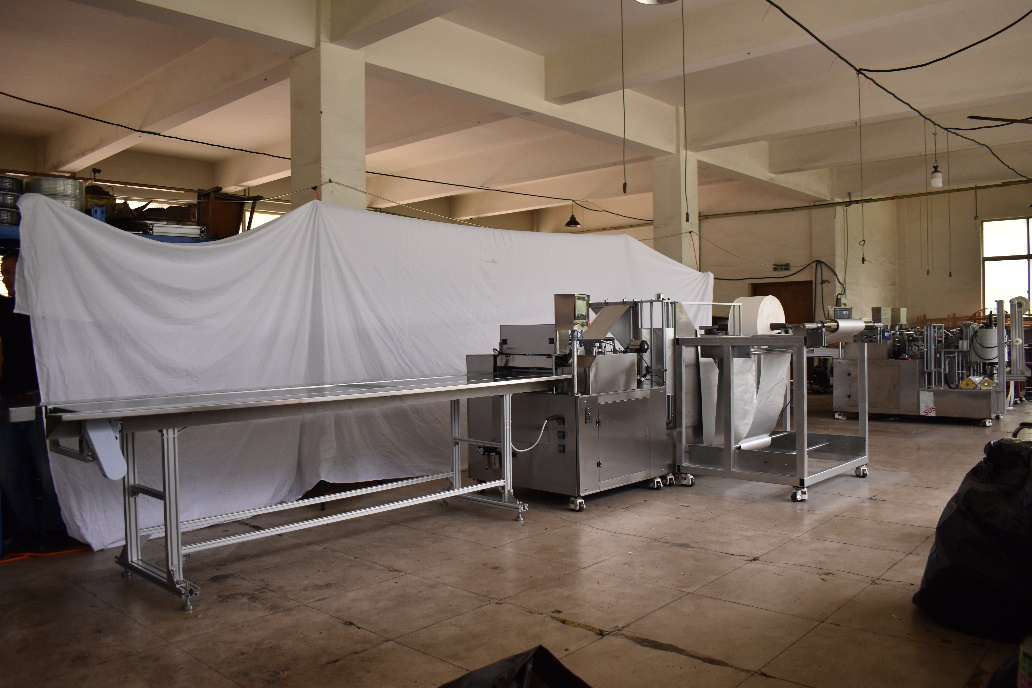

YF-04000-8S automatic alcohol prep pad machine
1、Apparatus list設備主要部件配置清單
|
名稱/Name |
品牌型/Brand |
型號Model |
備注Remark |
|
運動控制器 Programmable controller |
信捷 XINJE |
XDH-60T-E |
5顆伺服電機 單獨控制對應的工位 |
|
可編程人機界面HMI |
信捷XINJE |
TG765S-XT |
|
|
總線伺服 Servo motor |
信捷XINJE |
DS5C1-20P7/MS6S-80CS |
|
|
光標Cursor |
松下Panasonnic |
LX-111 |
|
|
溫度控制儀 Temperature controller |
臺達Delta |
DTK4848V12 |
|
|
繼電器Relay |
魏德米勒 Weidmuller |
DRM270024LT |
|
|
氣動元件 Pneumatic equipment |
亞德客Airtac |
多類別 |
|
|
開關電源 Switching power supply |
明緯 Mean well |
LRS-100-24 |
|
|
注液泵 pump |
GOTEC |
EMX 08-T/C |
|
2、PACKING LIST通用裝箱單
|
NO./序號 |
Names/名稱 |
Specifications/規格 |
Quantity/數量 |
||
|
1 |
Alcohol prep pad automatic packing machine 全伺服酒精棉片包裝機 |
YF-04000-8S |
1 |
||
|
2 |
Cutter切刀(spare) |
|
1 |
||
|
3 |
Stainless steel bucket不銹鋼儲液桶 |
|
1 |
||
|
4 |
Operation specifications說明書 |
|
1 |
||
|
Implements/工具類 |
|||||
|
5 |
Double open-end spanner開口板子 |
|
3 |
||
|
6 |
Inner hexagon spanner 內六角板子 |
|
1set |
||
|
7 |
Wire cutter鋼絲鉗 |
|
1 |
||
|
8 |
Screwdriver螺絲刀 |
|
2 |
||
|
9 |
Forceps鑷子 |
|
1 |
||
|
10 |
Wire brush銅絲刷 |
|
1 |
||
|
Wearing parts/易損件（Spare） |
|||||
|
11 |
Relays繼電器(spare) |
|
4 |
||
|
12 |
Heating pipe加熱管(spare) |
220V800W |
4 |
||
|
13 |
Temperature sensor溫度傳感器(spare) |
K |
4 |
||
|
14 |
Bearing 623軸承 |
623ZZ |
4 |
||
|
15 |
Full ball beating 滿珠軸承 |
ST6205ZZ |
4 |
||
|
16 |
Graphite bearing 2028石墨軸承 |
2028 |
2 |
||
|
17 |
Pump注液泵 |
EMX 08-T/C |
1 |
||
3、Performance Characteristics性能特點
|
項目NAME |
配置OPTIONAL |
特點FEATURES |
|
主控制器 PLC |
運動控制器Programmable controller |
總線控制 Bus control |
|
橫封電機 Horizontal sealing motor |
帶總線伺服電機 Servo motor |
采用電子凸輪以實現更高的生產精度和靈活性。 Use the ECAM to achieve higher production accuracy ab flexibility.
|
|
縱封電機 Longitudinal sealing motor |
帶總線伺服電機 Servo motor |
生產速度數字調節，瞬時跟蹤。 The production speed can be freely changed using numbers, and the machine can respond quickly. |
|
芯材電機 Wet pad material motor |
帶總線伺服電機 Servo motor |
同步送料，長短位置等均為數字調節 The length and position of the non-woven can be adjusted on the HMI. |
|
成品刀 Product cutter |
帶總線伺服電機 Servo motor |
伺服電機單獨控制，切斷位置可通過數字精確調整 The servo motor individually controls the cutter, and the cutting position is accurate. |
|
芯材刀 Wet pad material cutter |
帶總線伺服電機 Servo motor |
The servo motor individually controls the cutter, and the cutting position is accurate. |
|
熱封模具 Heat sealing mold |
特氟龍涂層模具 Teflon coating mold |
不粘連包裝材料 Mold will not stick to packing materials. |
|
模具用軸承 Mold bearing |
耐高溫滿珠軸承 High temperature full ball bearing |
無需潤滑，安靜耐用 Bearings don’t need lubrication, quiet and durable. |
4、Optional可選配置
|
序號NO. |
名稱 NAME |
說明 INSTRUCTION |
功能 FUNCTION |
|
1 |
成品修邊裝置 Product trimming device |
邊料收卷/排放 Excess side material can be collected. |
防止出現白邊 Precent white edges on the product. |
|
2 |
無紡布分切機 Non-woven slitting machine. |
大幅寬無紡布分切 Largely wide non-woven is slit into the required. |
安裝一卷無紡布 分切尺寸可調 Only one roll of non-woven and the slitting size is adjustable. |
|
3 |
噴碼機 Inkjet printer |
多列裝噴碼機 Multi-column inkjet printer. |
批號、日期等 The products can be printed with date and batch etc. |
|
4 |
防塵罩 Dust cover |
半封/全封 Semi-enclosed or fully enclosed dust cover. |
防粉塵 Anti-dust etc. |
|
5 |
防粘熱封輥 Anti-sticking heat sealing mold. |
鐵氟龍熱封輥 Teflon coating mold. |
防止物料粘模具 Mold will not stick to packing materials. |
|
6 |
注液泵 Pump |
多品牌和類型的泵 Multiple brands and types of pumps can be selected. |
GOTEC (Switzerland) IWAKI (Japan) LMI (USA) |
5、YF-04000-8S參數標
|
Relevant technical parameters of YF-04000 -8S automatic alcohol prep pad machine |
||
|
Alcohol prep pad 酒精棉片參數 |
Non-woven無紡布 （Adjustable可調范圍） |
Non-woven unfolded size:無紡布尺寸： L30(adjustable range30-60mm)*W60mm(adjustable range30-60mm) 長30mm（可調范圍30-60mm）*寬60mm（30-60mm）
|
|
Folded method 無紡布折疊方式 |
Non-woven cloth folded one time,two layers or no folded. 無紡布一次對折或者不折疊 |
|
|
Packing materials 包裝材料 |
紙鋁塑復合膜（其他包裝材料據客戶要求訂做） Paper aluminum plastic compound film (other packing materials are customized upon request) |
|
|
Packaging size包裝規格（Adjustable可調） |
L50(adjustable range40-80mm)*W50mm 長50mm(可調范圍40-80mm)*寬50mm |
|
|
Adding liquid 注液范圍 |
Accurate amount can be adjusted注液可調范圍 0.20.-1.00g/bag |
|
|
Suitable wet pad material 無紡布卷徑 |
Roll, non-woven,diameter≤1000mm 無紡布卷徑≤1000mm |
|
|
Suitable packing material 包裝材料卷徑 |
Roll, packing material,diameter≤1000mm 包裝膜卷徑≤500mm |
|
|
Inner diameter of raw paper tube 卷心內徑 |
3 inch (≈76mm) 3英寸（約76mm） |
|
|
Automatic Alcohol prep pad machine 酒精棉片機參數 |
Dimensions 機器尺寸 |
3500×1800×1500mm |
|
Weight重 量 |
About 1000kg ≈1000kg |
|
|
Packing rate包裝速度 |
About800-1200PCS/Min 800-1200片/分鐘 |
|
|
Voltage電壓 |
單項220V 6KW ;Single-phase voltage 220v 6KW |
|
|
Servo motors 伺服電機數量 |
6 pcs 6顆 |
|
|

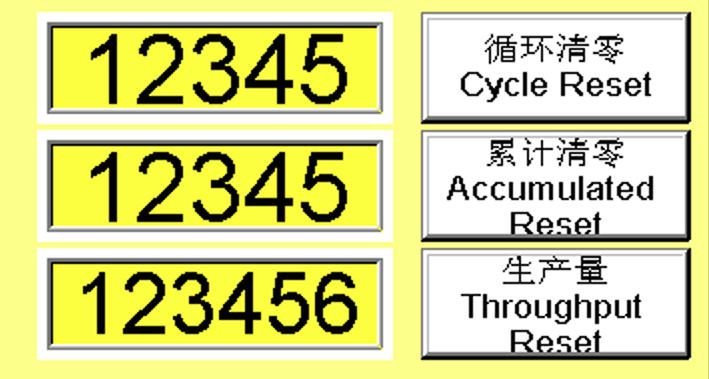

Counting method 設備計數方式 |
|
|
- 性能和主要參數
特點：
- 采用臥式機型，連續滾輪式封裝。生產速度快，效率高。
- 全觸摸屏控制，控制方便，安全穩定，不易損壞。
- 熱封溫度可根據產品需要自由調整，棉片或濕巾長度也是根據產品需要自由調整。更換品種方便，對原材料適應性強。
- 包裝速度、制袋尺寸、注液量可根據機型和產品需要在一定范圍內方便調整。
Features:
1. The horizontal-type machine, and continuous roller sealing; high production speed, and high efficiency.
2. Full touch screen control, convenient control, safe and stable, and not easy to be damaged.
3. Heat-sealing temperature can be adjusted freely according to the products, and the length of cotton piece or wet tissue can also be adjusted according to the need of products; convenient to change the product with strong adaptability to the raw materials.
4. Packaging speed, packaging size and volume of injecting liquid can be adjusted within a certain range according to the model and products.
- 包裝材料：外袋可用多層復合膜、紙塑鋁復合等多種材料。包材卷內孔直徑75毫米，外徑小于400毫米，在一邊印定位色標，色標尺寸大于4×8毫米，色標之間不要有其它文字或圖案，以免造成色標誤讀。色標與基材顏色反差要盡量大，盡量選黑、深蘭、深綠，選其它顏色做色標請提前通知我廠。
- 內芯材料卷外徑小于1000毫米，內孔直徑為76毫米，其材質為無紡布。
5. Packaging materials: the outer bags can adopt the multi-layer composite membranes, Al-PE-Pa complex materials, etc. The diameter of packing materials’ inner bore is 75mm, and the external diameter is less than 400mm; the location color mark is printed in one side with the size of greater than 4×8mm; there should be no other words or patterns between color marks, so as not to avoid the color mark misunderstanding. The color contrast between the color mark and base material should be great as far as possible; the black, dark blue and dark green are recommended; and please inform our factory in advance if selecting other colors as the color mark.
6. The external diameter of inner core material is less than 1000mm, and the diameter of inner core is 76mm; its material is non-woven fabrics.
- 采用運動控制器多軸伺服電機聯動控制技術。主要技術參數：
成品外包裝尺寸：50x50mm（單項可調，可定制）
內芯尺寸：30x60mm （多折可調可換）
生產能力：800-1200片/分鐘（六列）
總功率：6KW
- Multi-axis servo motor linkage control with the programmable controller. The main technical parameters:
Outer packing size of finished product:50x50mm
Inner core size: 30x60mm
Production capacity:800-1200pcs/min (8C)
Total power: 6kw
電源：單相220V
使用環境溫度：10?C-35?C
整機重量：1000kg
設備展開后尺寸：長3800mm×寬 1800mm六列臥式上料×高1500mm
Power supply: Single-phase voltage 220v
Service environment temperature: 10?C-35?C
Total weight: 900kg
Extended equipment size: L2800×W1800×H1500mm
